Linear Continuous Acoustic

$0.00

THIRD GENERATION

aaline’s LW-EB-LC-AC series is our solution for larger projects that require seamless integration of lighting and acoustic performance in a cost-effective manner. The system is made with 100% natural felt, backed with sound-absorbent fibre boards. It is one of the best performing acoustic solutions and the first Zero-Plastic acoustic light with Class A fire rating.

[divider]

LUMEN OUTPUT DIRECT:
LO: 650 lm/ft | 6.2 W/ft | 105 lm/W
ST: 1000 lm/ft | 9.5 W/ft | 105 lm/W
HI: 1514 lm/ft | 14.4 W/ft | 105 lm/W
LUMEN OUTPUT INDIRECT:
LO: 726.2 lm/ft | 6.2 W/ft | 117.3 lm/W
ST: 1117.2 lm/ft | 9.5 W/ft | 117.2 lm/W
HI: 1691.5 lm/ft | 14.4 W/ft | 117.2 lm/W
+/- 5% based on optics and CCT
POWER INPUT: 110-277V AC, 50/60 Hz
DIRECT OPTICS: Lambertian, Oval, Wide, Extra Wide, Asymmetric
INDIRECT OPTICS: Lambertian, Batwing Wide, Batwing Extra Wide, Asymmetric

[divider]

PRODUCT DOWNLOADS
Full Specification Sheet*
Photometry
*Any submitted quotes for the Linear Continuous will be referencing the newest Linear Continuous, Third Edition specifications. This spec sheet will be used as a reference for Acoustic and Anti-Glare versions only. These spec sheets will be made available for public soon. Contact us for more information.

PRODUCT RESOURCES
Configure Your Fixture ➔
Linear Series Brochure ➔
Request a Quote ➔
Available Product Finishes ➔

THIRD GENERATION

aaline’s LW-EB-LC-AC series is our solution for larger projects that require seamless integration of lighting and acoustic performance in a cost-effective manner. The system is made with 100% natural felt, backed with sound-absorbent fibre boards. It is one of the best performing acoustic solutions and the first Zero-Plastic acoustic light with Class A fire rating.

[divider]

LUMEN OUTPUT DIRECT:
LO: 650 lm/ft | 6.2 W/ft | 105 lm/W
ST: 1000 lm/ft | 9.5 W/ft | 105 lm/W
HI: 1514 lm/ft | 14.4 W/ft | 105 lm/W
LUMEN OUTPUT INDIRECT:
LO: 726.2 lm/ft | 6.2 W/ft | 117.3 lm/W
ST: 1117.2 lm/ft | 9.5 W/ft | 117.2 lm/W
HI: 1691.5 lm/ft | 14.4 W/ft | 117.2 lm/W
+/- 5% based on optics and CCT
POWER INPUT: 110-277V AC, 50/60 Hz
DIRECT OPTICS: Lambertian, Oval, Wide, Extra Wide, Asymmetric
INDIRECT OPTICS: Lambertian, Batwing Wide, Batwing Extra Wide, Asymmetric

[divider]

PRODUCT DOWNLOADS
Full Specification Sheet*
Photometry
*Any submitted quotes for the Linear Continuous will be referencing the newest Linear Continuous, Third Edition specifications. This spec sheet will be used as a reference for Acoustic and Anti-Glare versions only. These spec sheets will be made available for public soon. Contact us for more information.

PRODUCT RESOURCES
Configure Your Fixture ➔
Linear Series Brochure ➔
Request a Quote ➔
Available Product Finishes ➔

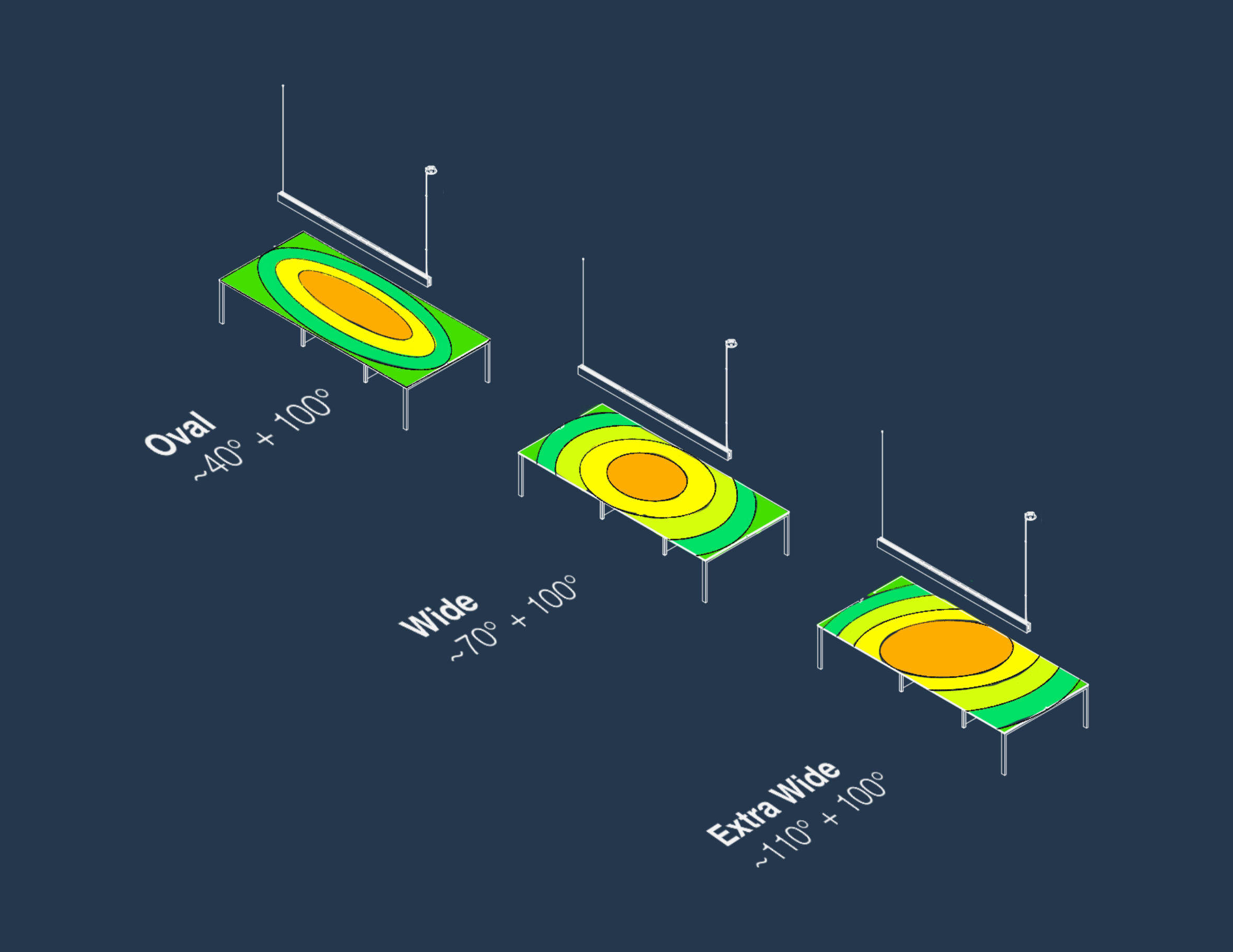

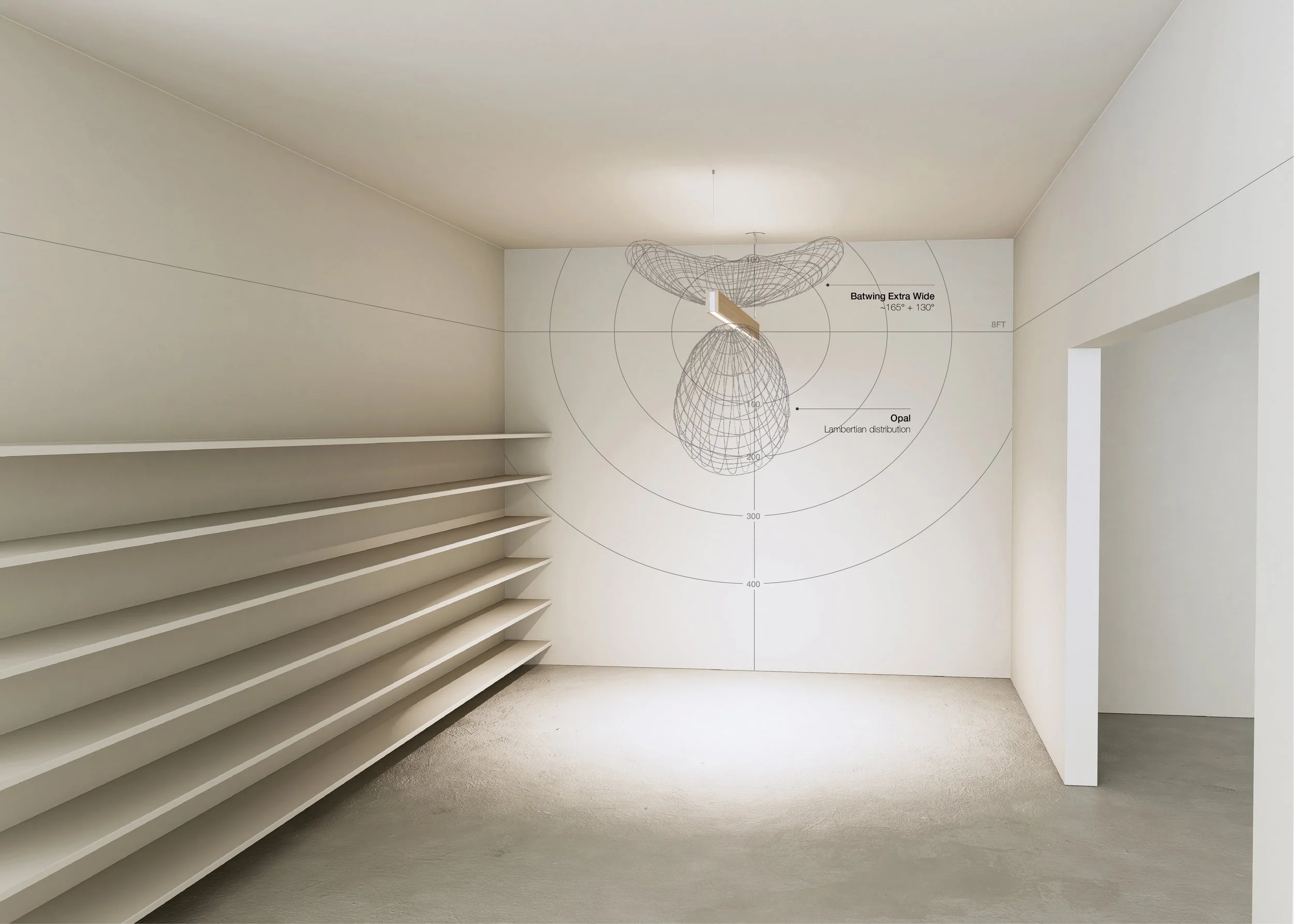

Optics for Any Occasion.

The Linear Continuous offers various optic selection for both direct and indirect light distribution including Lambertian, Oval, Wide, Extra Wide, and Asymmetric for direct and Lambertian, Batwing Wide, Batwing Extra Wide, and Asymmetric for indirect. The flexibility of specifying direct and indirect optics allows full control of the required light direction and performance in the space.

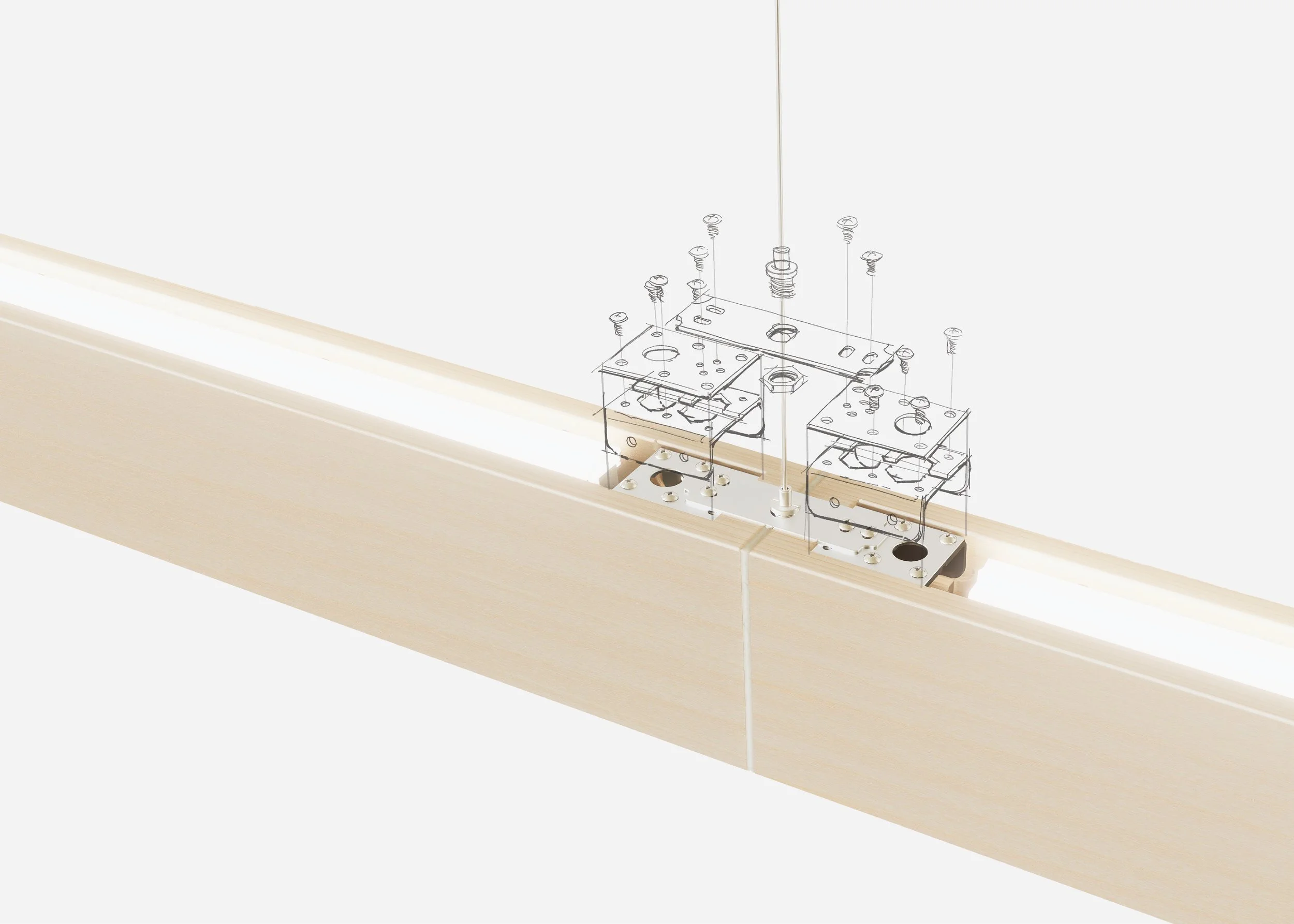

Design Without Limits.

aaline’s Linear Continuous fixture delivers virtually uninterrupted illumination with no restrictions on length. Engineered as a modular system, each section is manufactured at 8 ft and under for ease of handling and streamlined installation. Modules connect with precision-engineered joints and adjustable hardware, enabling perfect alignment and visually continuous runs of any length. This design gives architects and lighting designers the freedom to execute ambitious, large-scale projects without compromising on consistency, practicality, or performance.



The Linear Look.

aaline’s architectural light fixtures are equipped with programmable LED engines, enabling precise tuning of lumen output for optimal illumination in any space. This control ensure lighting remains efficient, visually comfortable, and compliant with energy codes. The flexibility of aaline systems empower designers and architects to explore creative fixture placement, confident that performance will match their design intent. When paired with congruent acoustic systems, aaline fixtures deliver a minimal, linear form factor accented by the warm, timeless character of wood.

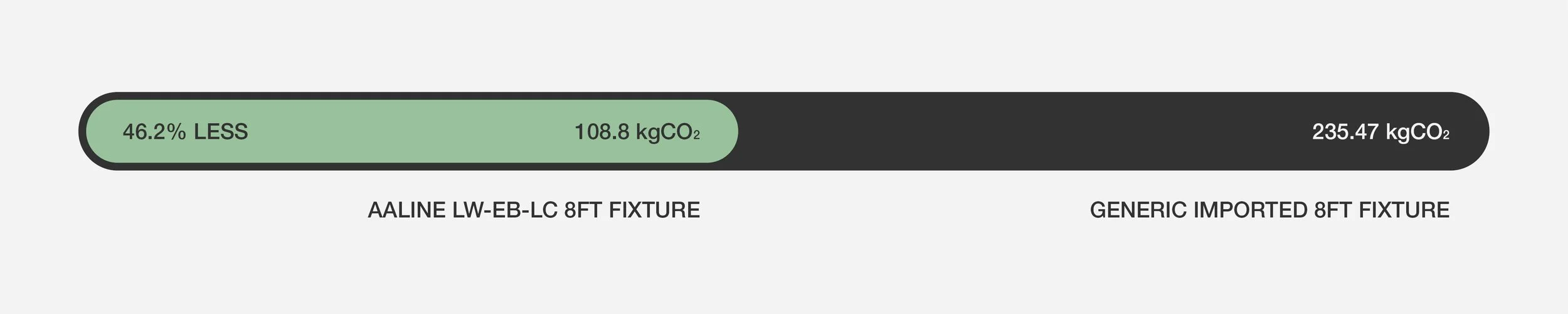

CARBON FOOTPRINT ESTIMATE




PRODUCT CONFIGURATOR





fsc certified wood

As a North American manufacturer, we take pride in innovating with one of our country’s highly sought after natural resources. Relying on a local supply-chain contributes to our local economy and reduces our carbon footprint on transportation. Our wood is supplied and milled under 50 km from our factory.

100% NATURAL ACOUSTIC FELT FINISH

Sheep wool is an outstanding insulator. For thousands of years sheep have been able to survive the elements using their wool coats to protect them from extreme cold and heat. Due to the crimped nature of wool fibers, they form millions of tiny air pockets that trap air, helping to provide a thermal barrier. Thus, wool has great sound absorption. Wool can achieve high absorption coefficients for control of room reverberation.

Earth and Monochrome tones shown. View our Materials page for all available colours.
