DIGITAL BROCHURE
Linear
Series
This series encapsulates aaline’s linear systems featuring high-performance LED technology, guaranteeing a consistent and reliable output that meets the highest standards. The Linear Series is purposefully designed to offer a diverse range of specification and customization possibilities, resulting in curated fixtures that meet particular project requirements.
Linear
Embedded
LW-EB-01
A premium system designed to provide a smooth and balanced light distribution for a focused output with versatile upgrades.
Min 1’ – Max 8’
536 lm/ft
Max 9.6 W/ft
LW-EB-HE
aaline’s highest efficacy light fixture of 132 lm/W for its base model at 80 CRI, 4000K.
Min 2’ – Infinite, visible luminaire divide every 2’
Low: 325 lm/ft
Standard: 662 lm/ft
High: 925 lm/ft
Max 6 W/ft
LW-EB-LC
A technically robust system designed to achieve long, uninterrupted runs with virtually infinite coverage.
Min 3’ - Infinite, visible seams up to every 8’
Power supply every 16’
Opal | 460 lm/ft, 40 lm/W
High-Efficacy | 736 lm/ft, 64 lm/W
LW-EB-ECO
A cost-effective solution for projects of any scale.
Min 1’ - Max 8’
250 lm/ft
Max 5 W/ft
model upgrades
- Double light in wider profile of 3-1/2”
- 1072 lm/ft, 19.2 W/ft
- Triple light in widest profile of 5-1/4”
- 1608 lm/ft, 28.8 W/ft
- UGR<16 compared to standard
UGR<25
- Ideal for specific WELL-certified and
LEED building requirements
- Multi-celled, CNC carved fixture
aaline Introduces: Linear High-Efficacy
- UGR<16 compared to standard
UGR<25
- Dual-celled, CNC carved fixture
- Available in single and double lights
- Combination of lighting + acoustics
- 100% natural felt in 40+ colours
- Backed with sound absorbent fibre
boards
- Available in 6” and 12” depths
Linear
High-Efficacy
aaline’s highest-efficacy fixture boasting 136 lm/W in a unique profile. This system offers variable power settings, a wide range of colour temperatures, and optical solutions that can be adjusted individually between direct and indirect lighting needs.
MODEL UPGRADES
- UGR<16 compared to standard
UGR<22
- Ideal for specific WELL-certified and
LEED building requirements
- Extended profile
- Combination of lighting + acoustics
- 100% natural felt in 40+ colours or
Maharam textile selection
- Available in 4”, 6”, and 12” depths

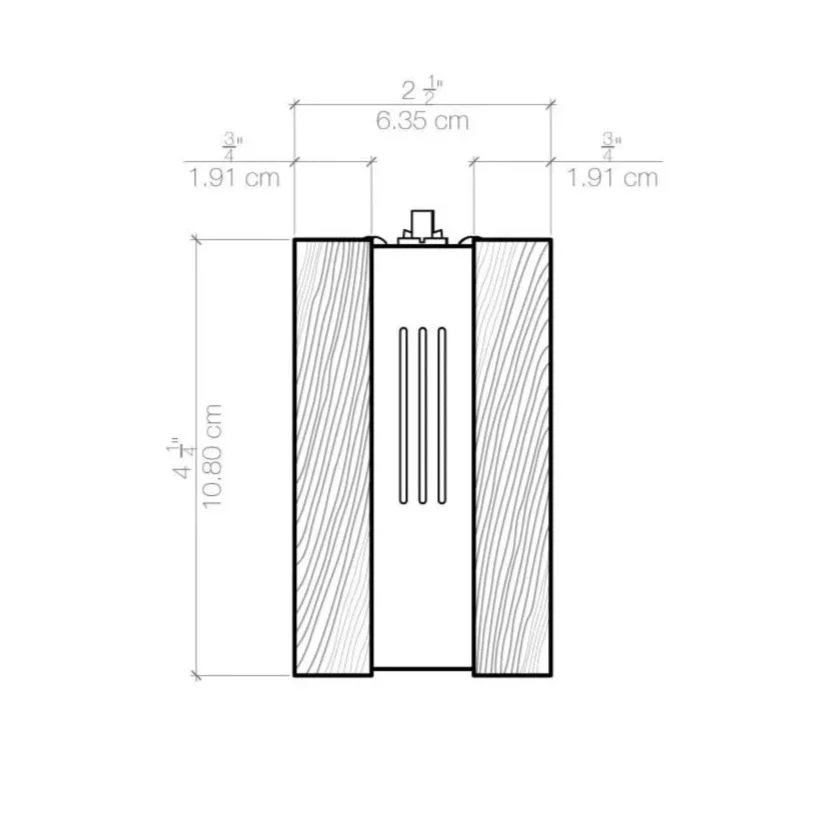

Linear Continuous
A continuous illumination perfect for large scale projects that require long, uninterrupted runs. Available in technical upgrades including tunable white, dim-to-warm, and integrated sensors.
MODEL UPGRADES
- UGR<16 compared to standard
UGR<25
- Ideal for specific WELL-certified and
LEED building requirements
- Multi-celled, CNC carved fixture
A minimal, sustainable fixture carved out of a single block of locally sourced, FSC-certified, Canadian hardwood. The LW-EB is powered by programmable lux/lumens drivers for accurate performance.
- Combination of lighting + acoustics
- 100% natural felt in 40+ colours
- Backed with sound absorbent fibre
boards
- Available in 3”, 6”, and 12” depths
- Combination of lighting + acoustics
with a softer look and subtle change
in profile
- 100% natural felt in 40+ colours
- Backed with sound absorbent fibre
boards
- Available in 3”, 6”, and 12” depths
Linear Eco
A cost-effective solution designed to minimize carbon footprint. The Linear Eco features a slimmer profile and recessed, acoustic felt end caps for a minimal appearance.
Technical
Parameters
PROGRAMMABLE DRIVER
i | integrated
Driver is inside the light fixture with a high voltage cable from a junction box in the ceiling locally. Recommended for spaces with an accessible junction box.
R | REMOTE
Direct low-voltage cables from the ceiling with the driver in a remote location [e.g. utility closet]. Recommended for spaces where future planning is possible with junction boxes that are less readily accessible locally.
C | powered canopy
Direct low-voltage cables from a canopy that is centred on an existing junction box to be powered locally. Recommended for spaces that require local accessibility of the driver without it being directly in the fixture.
Mounting
Options
INTEGRATED DRIVERS
Suspension cable is independent from the junction box for the simplest installation.
Recommended for projects where local flexibility is needed between the junction box location and fixture.
IN | INDEPENDENT
jb | junction box
Mounting installation option where site conditions will have the fixture centred based on the existing junction box.
Recommended for projects where the electrician has planned and accommodated the fixture location in advance based on aaline’s shop drawings.
TB | t-bar support
Mounting installation option that accommodates sites with preinstalled T-Bar ceilings. Power over cable hardware is used to install the remote driver above the T-Bars while securely hanging the fixture directly from the T-Bars utilizing T-Bar clip hardware.
For 15/16” T-Bar width.
Recommended for projects with existing suspended ceilings for a low-profile installation appearance.
RG | RIGID CONNECTION
Low voltage power over cable hardware is used to secure the fixture into the wall or ceiling with a rigid connection instead of suspension cables.
Recommended for projects where early-stage site coordination is possible for a low profile appearance.
Minimal hardware, low profile fixture, new-build construction, low-voltage wiring, high-end residential, rigid connection.
REMOTE DRIVERS
PO | power over cable
Low voltage power over cable hardware is used to secure the fixture into the wall or ceiling.
Recommended for projects where early stage site coordination is possible for a low profile appearance.
tb | t-bar support
Mounting installation option that accommodates sites with preinstalled T-Bar ceilings. The fixture is suspended direcly from the T-Bar using T-Bar clip hardware with the junction box above the ceiling panels.
For 15/16” T-Bar width.
Recommended for projects with existing suspended ceilings for a low-profile installation appearance.
POWERED canoPy drivers
JB | Junction box
Mounting installation option where site conditions will have the fixture canopy centred based on the existing junction box. Allows the fixture to be powered locally with the driver located in the canopy.
Recommended for projects where the electrician has planned and accommodated the fixture location in advance based on aaline’s shop drawings.
RG | RIGID CONNECTION
Mounting installation option that provides a rigid connection to the ceiling instead of suspension cables. Power cable is independent from the rigid connection points.
Recommended for projects where a sturdy connection is needed and local flexiblity is needed between the junction box location and fixture.
Retrofit, renovation upgrades, commercial, institutional and residential projects, rigid connection.
