Cylinder Diffuse

$0.00

CONFIGURE YOUR FIXTURE ➔

CYLINDER SERIES BROCHURE ➔

REQUEST A QUOTE ➔

The Cylinder Diffuse introduces an unanticipated moment for the unique diffusion of light through elegant materials. aaline’s new territory of working with aluminum produces components that are manufactured with precision for an unprecedented and captivating fixture.

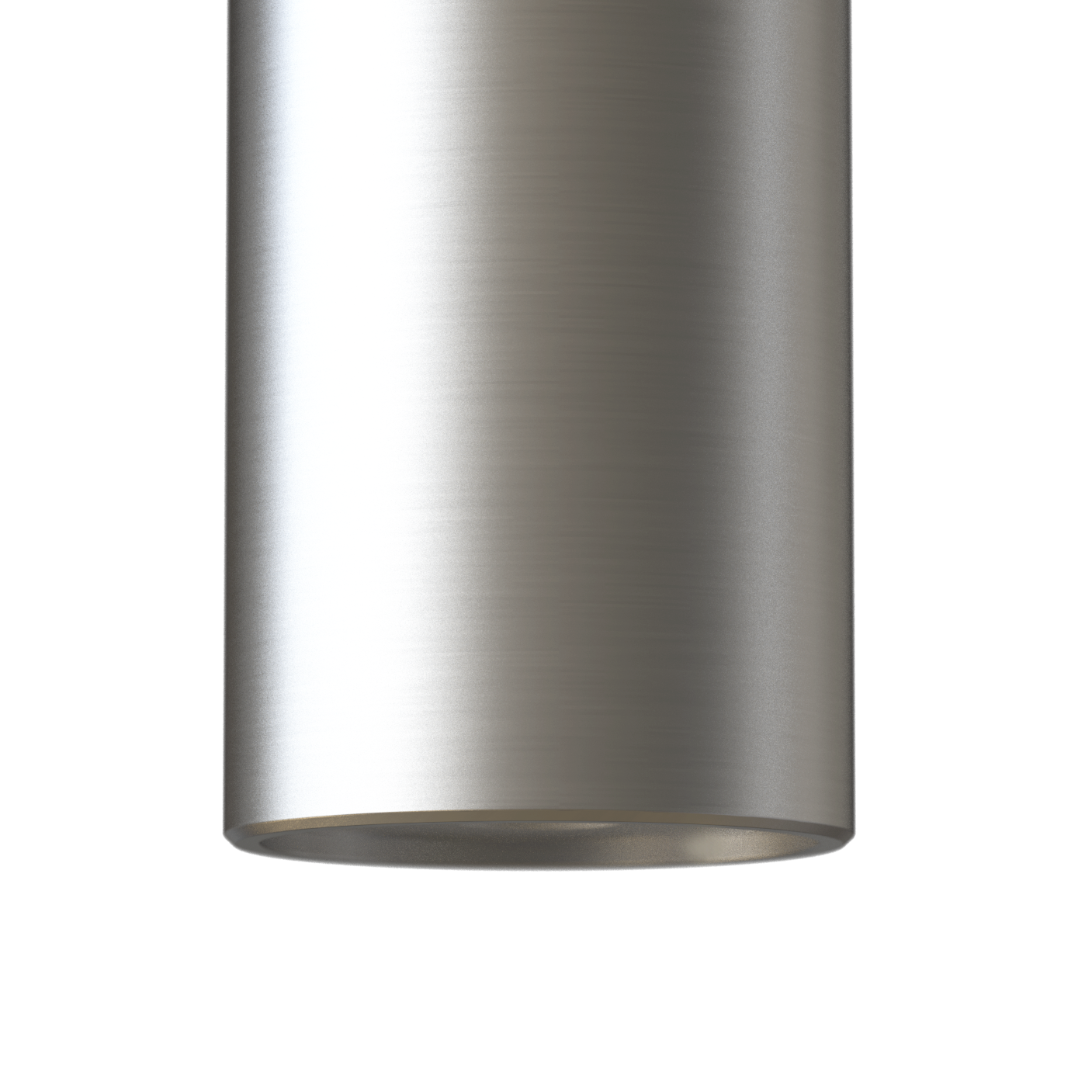

The compact pendant features a robust aluminum housing with an integrated heatsink for increased life expectancy. Available in different finishes and beam angle options, this product is easily customizable to fit required specifications.

SERIES: CY
MODEL: DF
LUMEN OUTPUT + CONSUMPTION:
Integrated
1100 lm, 9.9 W
Remote or Powered Canopy
640 lm, 5.4 W | 825 lm, 7.2 W | 1100 lm, 9.9 W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%. Custom upon request.
POWER INPUT: 110-277V AC, 50/60 Hz
OPTICS: PMMA lens, various beam angles

Add To Cart

SUSTAINABLE
Each piece is manufactured from local, recyclable aluminum with intentional suppliers and a robust system meant to last.

CUSTOMIZABLE
This product is intentionally designed to be customized and fine-tuned to look and perform exactly as required by the project designers, engineers, and architects.
SCALABLE
Envisioned by Fishtnk’s team, this product is adaptable by nature and can be featured in interior environments as a minimal, singular unit or in appropriate, large-scale formations to fill the space.
DIAMETER
2-3/8”Ø
PROGRAMMABLE DRIVER ➔
Integrated
Remote
Powered Canopy

HEIGHT
Small | 9-3/8” + 5-3/8”

POWER
640 lm, 5.4 W
825 lm, 7.2 W
1100 lm, 9.9 W
Efficacy: 111 lm/W
Based on 80 CRI, 3000K. Actual output may vary +/- 5%
HEIGHT
Small | 14-3/4"
BEAM ANGLE
Super Spot | 15°
Spot | 18°
Medium | 24°
Wide | 36°
Extra Wide | 60°

CRI
80 [111 lm/W]
90 [99 lm/W]
Based on 80 CRI, 3000K. Actual output may vary +/- 5%

DIMMING
0-10V
TRIAC/ELV
DALI
LUTRON EcoSystem

COLOUR TEMPERATURE ➔
2700K, 90+ CRI
3000K, 90+ CRI
3500K, 80 and 90+ CRI
4000K, 80 and 90+ CRI
Dim-To-Warm | 3000K - 1800K
CANOPY
Black
White
Custom
CABLE - INTEGRATED [HIGH VOLTAGE]:
Black
White

CABLE - REMOTE [LOW VOLTAGE]:
Clear Jacket with Silver Core

CABLE LENGTH:
5' [Standard]
Custom

MOUNTING OPTIONS - INTEGRATED ➔

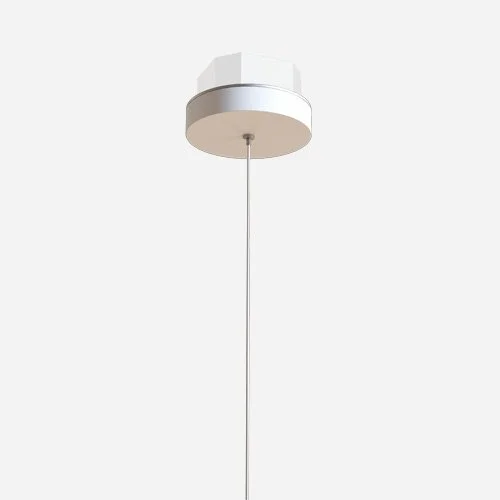

Junction Box Support

MOUNTING OPTIONS - REMOTE ➔
Power Over Cable

MOUNTING OPTIONS - POWERED CANOPY ➔
Junction Box Support
